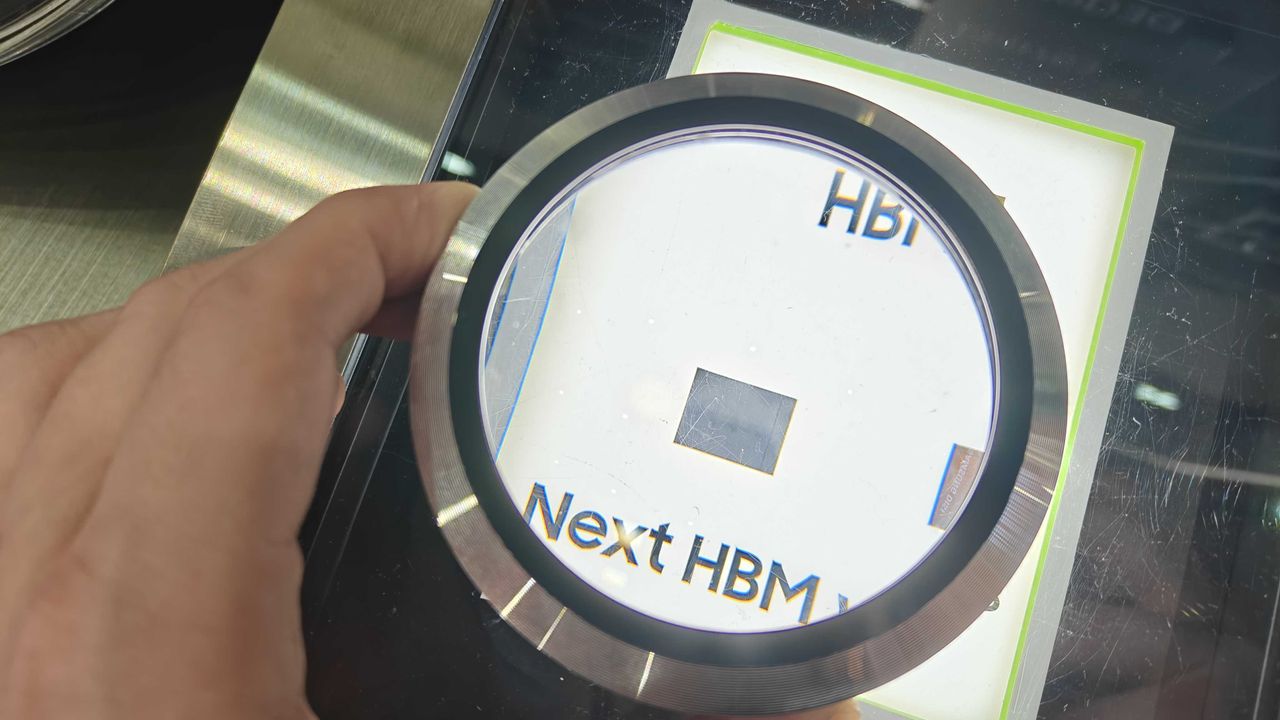

As artificial intelligence workloads expand across enterprise compute clusters, memory bandwidth has replaced raw compute capacity as the primary bottleneck in system design. To address this persistent hardware constraint, Samsung Electronics recently presented its preliminary technical roadmap for the next-generation HBM5 memory specification during an executive industry summit. The target specifications outlined by the memory manufacturer aim for a twofold performance increase over HBM4E alongside a 20 percent enhancement in power efficiency. Achieving a doubling of per-stack bandwidth presents an unprecedented physical challenge for silicon architects and integration teams. The semiconductor industry faces a pivotal juncture where traditional scaling methods hit clear engineering boundaries. Hardware designers must now reconsider fundamental packaging topographies and interface signaling models.
Architectural Bottlenecks in the HBM5 Memory Specification
The rapid evolution of trillion-parameter large language models requires massive memory throughput to keep tens of thousands of compute cores continuously supplied with data matrix operations. Current high-bandwidth memory generations achieve impressive throughput, yet accelerator packages remain constrained by pin speeds, interconnect routing density, and thermal limits. Memory manufacturers must balance data bus expansion against physical silicon yields while keeping total power budgets within manageable cooling parameters. When bandwidth demands outpace standard memory interfaces, data center operations suffer from reduced compute utilization and higher operational expense. System designers must therefore analyze how next-generation memory topographies can break past historical throughput limits without causing catastrophic thermal penalties across dense accelerator packages.
Analyzing official industry specifications reveals the steep technical gradient required to transition from current HBM4 variants to upcoming standards. Standard setting organizations and industry coverage reports note that baseline transfer rates for HBM4E sit near 12 gigatransfers per second per pin. Although memory manufacturers and physical layer controller suppliers design custom silicon rated up to 16 gigatransfers per second, doubling effective bandwidth requires fundamental architectural changes. Moving from approximately 2 terabytes per second per stack in HBM4E to roughly 4 terabytes per second in HBM5 demands either doubling signal transmission speeds or dramatically expanding the physical pin count across the interposer.
Physical Trade-Offs Between Pin Speed and Bus Width
To achieve the throughput targets of HBM5, hardware designers must evaluate two distinct engineering pathways that carry radically different physical trade-offs. The first path requires pushing per-pin signaling rates to an aggressive 24 gigatransfers per second while maintaining the established 2,048-bit bus width. However, transmitting data at ultra-high clock rates over short interconnect channels creates severe signal integrity challenges due to electrical attenuation, crosstalk, and timing jitter. Equalizing high-frequency signals demands complex physical layer circuitry on the base die, which increases parasitic power draw and generates substantial heat. Consequently, relying solely on higher per-pin clock speeds threatens to undermine the strict energy efficiency goals established for future memory stacks.
The second technical path involves doubling the interface bus width from 2,048 bits to 4,096 bits while keeping per-pin signaling rates at manageable clock frequencies. Expanding the memory bus to 4,096 bits preserves superior energy efficiency per transmitted bit, as lower operating frequencies reduce electrical switching losses. However, doubling the bus width doubles the required number of through-silicon vias, micro-bumps, and routing traces within both the memory stack and the interposer. This exponential increase in physical interconnect density introduces extreme manufacturing complexity, requiring precise alignment during 3D packaging. Just as establishing a unified AI hardware standard reduces interface fragmentation in distributed robotics systems, standardized base die architectures are necessary to manage ultra-dense interconnect routing.
A third hybrid option could emerge as an intermediate compromise for memory controller designers and foundry partners. By expanding the interface to 3,072 bits and applying a moderate increase in pin speed, silicon engineers could achieve the targeted throughput without pushing either variable to its absolute physical extreme. This balanced configuration would moderate total micro-bump density while preventing the signal degradation inherent to ultra-high signaling speeds. However, customizing interposer routing pitches for a non-standard bus width creates additional tooling costs for foundry partners and substrate suppliers. Every incremental increase in physical pin count forces packaging engineers to re-evaluate structural stress, substrate warpage, and yield losses during high-volume manufacturing assembly.
Thermal Dissipation and Heat Path Innovations
Higher throughput inevitably increases thermal energy density within tightly packed multi-layer DRAM structures, making heat removal a primary architectural concern. To counteract localized thermal hotspots, Samsung highlighted that its proposed strategy incorporates a dedicated heat path block directly inside the memory stack architecture. This integrated thermal feature aims to reduce internal thermal resistance by 20 percent compared to conventional stack designs. Lowering internal thermal resistance allows heat to conduct more effectively from lower memory dies and base logic layers toward the package surface. Efficient structural heat dissipation simplifies module-level liquid cooling requirements in dense data center racks, preventing memory controllers from throttling performance during sustained model training workloads.
Thermal management in high-bandwidth memory stacks cannot be isolated from the operational characteristics of the surrounding hardware ecosystem. Managing hardware physical constraints mirrors software resource allocation challenges, such as how operating systems enforce Android memory limits to maintain system stability under heavy application loads. In enterprise compute packages, exceeding thermal dissipation budgets degrades memory signal reliability and shortens component lifespans. Furthermore, energy efficiency improvements depend on reducing through-silicon via supply voltages, optimizing peripheral circuit power draw, and transitioning core DRAM arrays to advanced process nodes that lower overall parasitic capacitance across multi-gigahertz clock networks.
System-in-Package Scaling and Economic Reality
The integration of high-bandwidth memory into future artificial intelligence accelerators is triggering a structural shift in how compute clusters are constructed. Advanced multi-chip module projections from major foundries suggest that late-decade accelerators will incorporate between 20 and 24 memory stacks surrounding central compute engines. If individual HBM5 stacks deliver 4 terabytes per second of throughput, total system-in-package memory bandwidth could reach between 80 and 96 terabytes per second. This massive aggregated memory pipe will eliminate data starvation for high-density tensor core arrays, enabling unprecedented efficiency in real-time inference and massive model training across distributed enterprise networks.
Transitioning to advanced base dies manufactured on logic-class foundry nodes further reshapes the competitive dynamics between DRAM vendors and semiconductor foundries. Historically, memory suppliers produced base dies using standard memory fabrication processes without relying on external logic foundries. However, as bus widths double and complex power management features migrate to the base die, advanced logic process nodes offer superior transistor density and finer interconnect routing pitches. This shift requires memory manufacturers to establish deep technical partnerships with third-party foundries and custom ASIC developers. The resulting supply chain interdependencies will influence technology adoption timelines, pricing models, and capital expenditure strategies across the global semiconductor ecosystem.
Ultimately, the commercial adoption of fifth-generation high-bandwidth memory will depend on balancing packaging yields with system-level economic value. Memory manufacturers cannot rely on traditional lithographic node shrinks alone to deliver the performance leaps demanded by artificial intelligence workloads. Instead, progress requires holistic co-design spanning DRAM cell layout, logic base die architecture, interposer routing, and structural thermal management. As memory and logic become fully integrated within multi-chip packages, competitive advantage in enterprise compute will belong to hardware architectures that successfully master the balance between pin speed, interconnect density, and thermal dissipation.
